AP-104010-3B

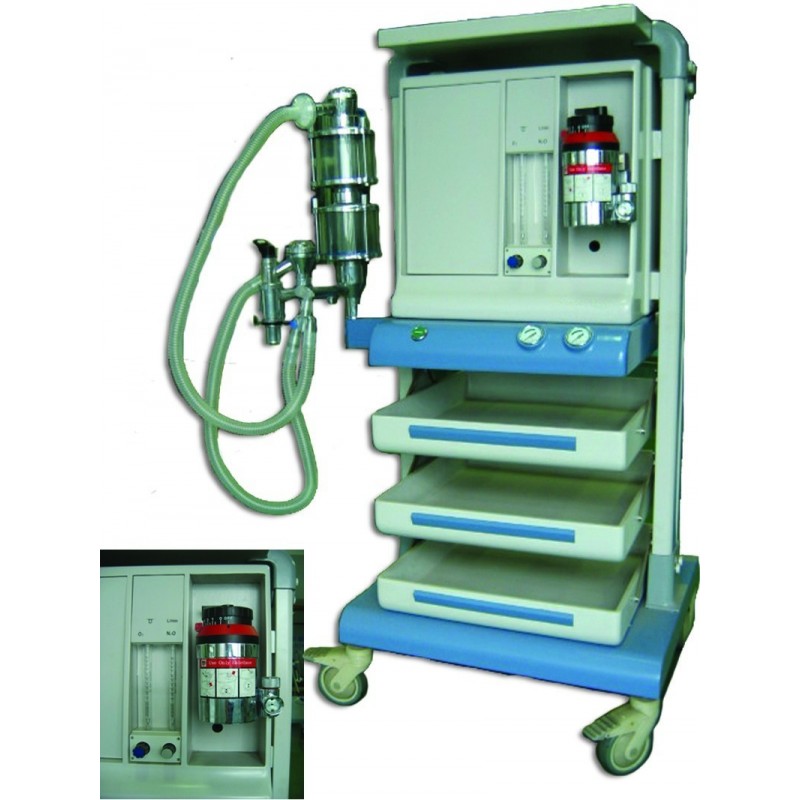

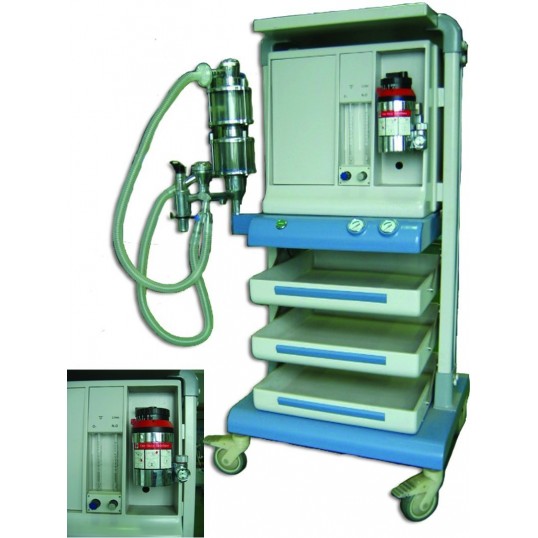

THIS MACHINE IS A UNIVERSAL AND MULTI-FUNCTIONAL ANESTHESIA MACHINE
Incorporating:
• Anesthesia
• Respiratory
• Monitoring
The design improves the reliability, safety and combination.
Also consideration has been taken to the connection between anesthesia machine and all kinds of monitors, extending it’s functions.
This machine is equipped with a breathing system with ISO standard connectors and high-precision vaporiser, suitable for closed, semi-closed and semi-opened inhalation and non-inhalation anesthesia in all levels hospitals.
Dimensions: 57 × 58 × 114cm
Weight: 52kg
- 50
50 years of experience
Large distribution network
Quality technical services
More info
Technical Specifications:
• Flowmeter measuring range: O2 flow 0.1~10L/min N2O flow 0.1~10L/min
• Gas supply: 0.27~0.55mPa
• O2 flush: 35~70L/min
• N2O cut off: O2 pressure drops below 0.2 Mpa
• Enflurane vaporizer: 0.2 -5%, with compensation functions
• Relief valve: 5 ~40 cm H2O
• ORC system: concentration of O ² ≥ 25% (O + ² N ² O)
• Shutdown System N ² O: active when the pressure of O ² ≤ 0.1MPa
• Alarm insuffisance O ², audible alarm when the pressure of O ² ≤ 0.2MPa
• On trolley with 2 trays detachable, on castors with brake
