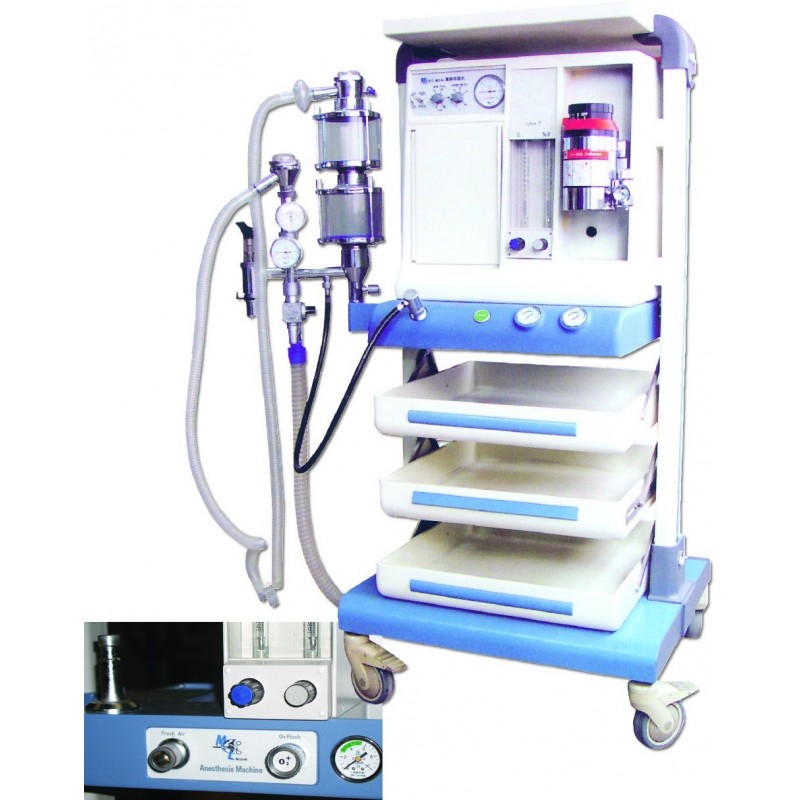

AP-104020-3B1

Technical Specifications:

• Supply pressure: 0.27~0.55MPa

• Flow control O2: 0.1~10L/min

• Flow control N2O: 0.1~10L/min

• ORC system: Oxygen not less than 25% within mixture gas

• N2O automatic cut-off: Active when oxygen pressure less than 0.1MPa

• O2 flush: 50±10L/min at O2 pressure of 0.45MPa

• Adjustment concentartion of Enflurane Vaporizer :0 ~5Vol%

• Airway pressure limit range ( APL): 0.5~7kpa

• SC-M3A1 anaesthesia ventilator working type: Pneumatic -controlled and pneumatic- criven,time cycle,volume constant

• Ventilation frequency : 6 ~40L/min

• Minute volume : 3 ~18L/min

• Gas consumption: less than 0.8L/min (for control part)

• No need of power supply. Only compressed oxygen for pneumatic driving and pneumatic control

• O² deficiency alarm

• Anesthesia ventilator, with easy operation and low-air consumption

• Anesthesia ventilator: Freq. 6~40 bpm, MV: 3~18L/min I :E 1:1.5 ( fixe )

• Safety working pressure: ≤6KPa

• Monitor: Airway Pressure, Tidal volume, MV, Gas Resource pressure

• On trolley with 2 trays detachable, on castors with brake
