AP-104100-30

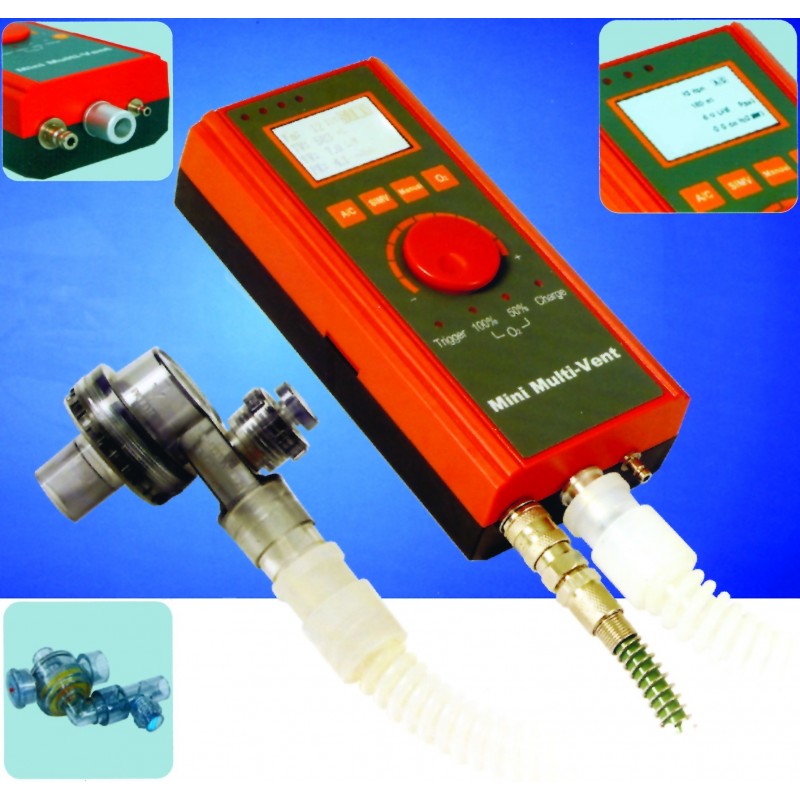

LATEST MODEL OF PORTABLE VENTILATOR EMERGENCY MULTI FUNCTIONS

Technical Specifications:

• Ventilation Modes: A/C, SIMV, MANUAL

• Tidal Volume: 100ml ~ 1800ml

• Ventilation frequency: 4 ~80bmp

• Spont ventilation switch pressure: 6 ~40cmH2O

• Airway pressure upper limit: 20 ~80cmH2O

• Airway pressure lower limit: 0 ~20cmH2O

• Inspiratory time: 0.3s ~2s

• Trigger pressure: 0 ~- 20cmH2O

• O2 Concentration: 50% or 100%

• Airway safety pressure: 45cmH2O or 60cmH2O

• Gas supply pressure: 0.28 ~0.6Mpa

• Inner Lithium battery 2V, for more than 15h work

• Charger: AC 110 ~220V 50-60Hz

More info

Monitoring Parameters:

• Tidal Volume

• Trigger Pressure

• Ventilation frequency

• Volume ventilation / minute

• Spont ventilation trigger indicator

Alarms:

• Low airway pressure alarm

• High airway pressure alarm

• Low battery

• Alarme silent: 120s LCD

Display:

• Tidal Volume

• O2 Concentration

• Peak airway pressure

• Total ventilation frequency

• Trigger indicator

• Recharge indicator
