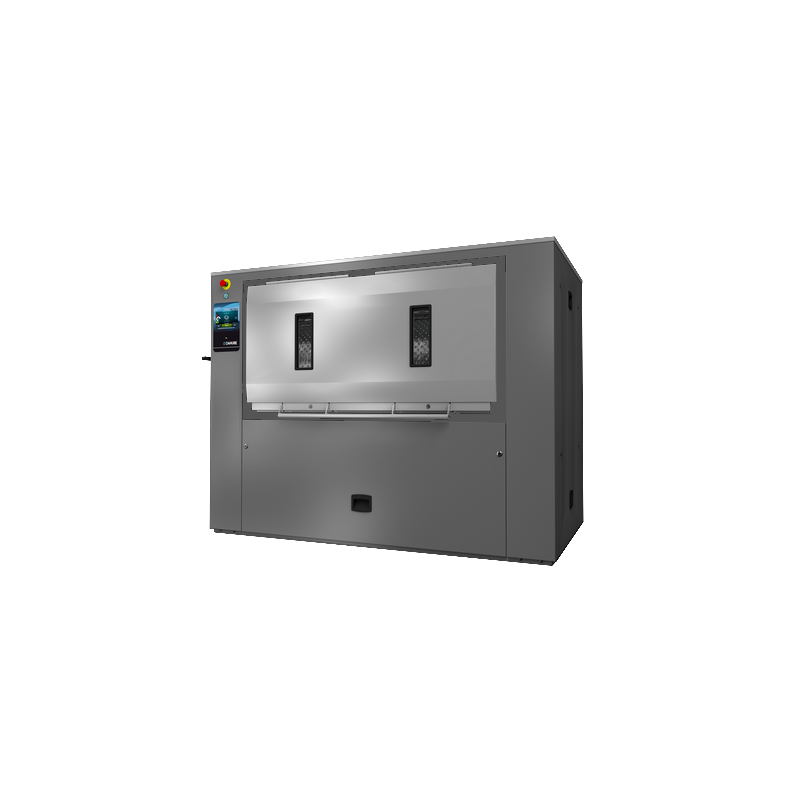

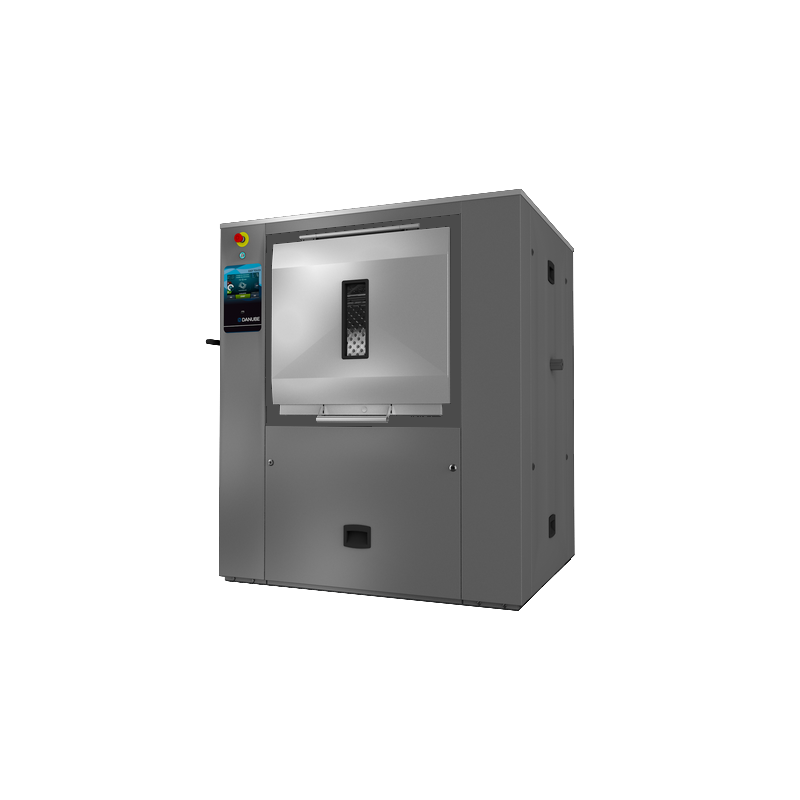

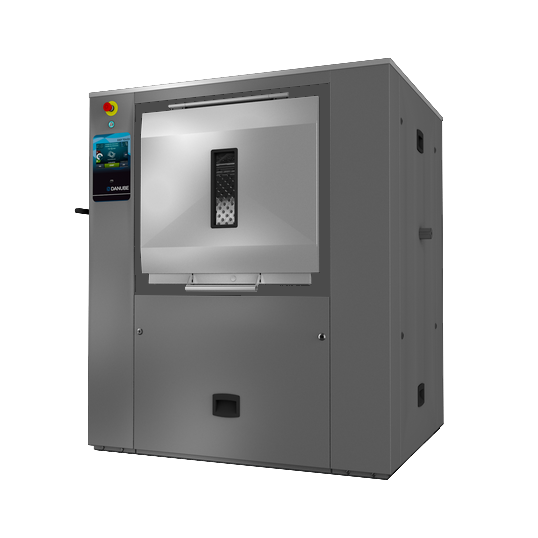

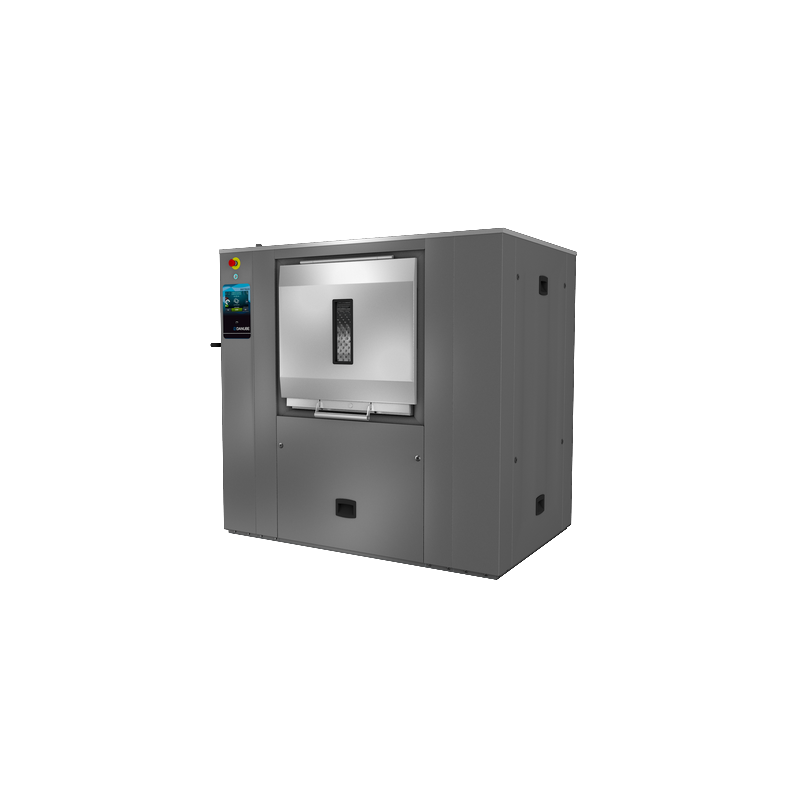

BL-DBW-ET2
BARRIER WASHERS EXTRACTORS , SOFT MOUNTED , HIGH SPIN SPEED
• Capacity : 27 to 70 Kg
• G factor 375 , extraction speed 920 rpm
• No need of anchoring
• Horizontally uspended drum by two axles.
• Outer casing in grey skinplate ,top panel , drum and vat in AISI304 Stainless steel
• EasyTouch 2 (ET2) microprocessor with touch screen 7 ", double display : 29 preset programs , 37 languages , ssibility to import, export, reate new programs.
• USB port
• 3 water inlets
• 8 signals for dosing ,ready to be connected to dosing pumps (no detergent box)
• Central drain Ø80mm
• Automatic positionning of drum with electric brake
OPTIONS ON THESE MODELS :
- Detergent box 4 compartments kit (on order or possibility to add later on site)
- UPS option in case of power failure (avoids motor brake blocking)
| DBW27 ET2 | DBW35 ET2 | DBW50 ET2 | DBW70 ET2 |
Capacité Capacities (1:9 –1:10) | 30 - 27 kg | 39 – 35 kg | 54 – 49 kg | 78 – 70 kg |
Volume tambour Drum volume | 266 l | 347 l | 489 l | 694 l |
Essorage TMN Spin speed RPM | 920 | 920 | 920 | 920 |
Facteur G G Force | 375 | 375 | 375 | 375 |
Dimensions mm | 1201x1098x1580 | 1359x1098x1580 | 1654x1098x1580 | 2061x1098x1580 |
Poids net Net weight | 886 kg | 926 kg | 1063 kg | 1190 kg |
